Water Softener vs Water Conditioner: Do You Need Both?
You cleaned the glass shower door on Saturday, and by Friday the haze is back across the lower third, chalky enough to feel under your thumb. The kettle element wears a white shell. The kitchen aerator runs slower than it did. Two people have told you two different stories: one wants a softener, the other says a salt-free conditioner does the same work without salt.
Those are two machines doing two different things to the same water. A softener removes calcium and magnesium from it. A conditioner leaves both in the water and changes the form they precipitate from solution, so scale arrives as a loose powder that rinses rather than a film bonded to metal. Run one behind the other and the second unit has nothing left to work on.
What Ion Exchange Takes Out of the Water
A softener is a tank of resin beads, each a small sphere of sulfonated polystyrene carrying fixed negative sites, loaded with sodium when the bed is fresh. Calcium and magnesium carry two positive charges, whereas sodium carries one, and the resin holds the two-charge ions more tightly. As your water works down through the bed, each calcium ion that arrives claims a site and pushes two sodium ions off into the water. Hardness leaves the water at that point. A hardness titration on what comes out the other side comes back near zero grains.
The trade is that the bed fills. Every site eventually holds calcium, and hard water then passes through untouched, so the bed has to be regenerated -- which is what the drain line, the control valve and the power cord are for. Regeneration reverses the exchange by concentration: brine drawn from the salt tank floods the bed with sodium concentrated enough to displace the calcium, and the rinse carries the hardness away. Federal water-use estimates put average household use above 300 gallons a day. At 16 grains per gallon, that is roughly 4,800 grains of hardness a day arriving at the bed, and the capacity you size for is that figure multiplied by the days you want between cycles.
What Template-Assisted Crystallization Leaves In
A conditioner built on template-assisted crystallization holds a bed too, but its media is granular and surface-treated: the beads carry microscopic nucleation sites, called templates, where dissolved calcium and bicarbonate assemble into calcium carbonate crystals. A crystal grows on its template until it reaches a certain size, then releases into the flow and travels on. Nothing is exchanged, and nothing is captured. The calcium and magnesium that came in leave with the same water, and the hardness at the outlet equals the hardness at the inlet.
What has changed is that your water now carries seed crystals. When conditions downstream push calcium carbonate out of solution, it has somewhere to land other than the inside of your pipe. There is no salt, no brine tank, no drain line, and no control valve, because there is nothing to regenerate. The claim attached to this media is scale prevention, and a national test procedure measures exactly that: deposit on a heated test surface against an untreated control. Feed water has to be clean. A whole-house conditioning system's technical sheet requires the iron in your supply to sit below 0.3 mg/L and the manganese below 0.05 mg/L. None of that is softening, which leaves "salt-free softener" a contradiction in terms, since softening is defined as the removal of hardness.
Where the Difference Shows on Your Fixtures
Every drop of water that dries on a surface leaves behind whatever was dissolved in it. That is the entire mechanism behind the film on your shower glass. Softened water dries without the carbonate film because the calcium was removed before the water ever reached the valve. Water from a conditioner still holds its calcium in solution, so the drop that dries on the glass still leaves a white ring and the door still needs a squeegee. Anyone selling you a conditioner for the sake of your shower door has skipped that step.
Soap works on the same chemistry. The fatty acid salts in a bar of soap react with dissolved calcium to form an insoluble calcium soap, which is the gray curd on tile, the film that stays on skin after a rinse, and the stiffness in towels. That reaction needs calcium in solution, and a conditioner leaves it there, so the curd carries on forming. A softener ends it, because there is no calcium left for the soap to find.

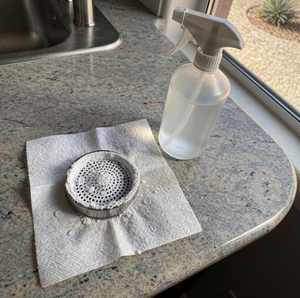

A conditioner earns its keep on hot metal, and on the fixture parts your water passes through on the way there. Check that claim at the aerator screen a month after any anti-scale unit is installed: wipe the screen dry and compare what comes off it with what you were scraping off before. Run that comparison on your own hardware rather than taking the claim on trust.
Powder that lifts off the screen onto a dry cloth is deposit that crystallized in the water and never bonded to the metal. A crust you have to pick at or dissolve with acid grew in place, and predates the unit.
What Each One Does Inside the Water Heater
Calcium carbonate is one of the few common salts whose solubility runs backward: it dissolves less readily as water gets hotter. That is why scale picks the hottest surface in your house to grow on. In an electric tank it is the element; in a gas tank it is the steel floor above the burner. On untreated water, the crystal nucleates on that metal and grows into a bonded shell that sits between the heat and the water it is meant to heat.
Softened water arrives at the near-zero hardness the bed leaves it at, so there is barely any calcium to come out of solution when it is heated, and your element stays clean. Conditioned water arrives with all of its calcium. Heating it still drives carbonate out of solution, but the seed crystals suspended in that water offer a surface to grow on before the element does, and what settles in the bottom of the tank is loose particulate a flush at the drain valve can carry out.
Hold on to that distinction, because sales language gets loose at exactly this point. A conditioner does not lower the mineral load reaching your heater. It changes where the mineral ends up, and a tank on conditioned water still earns a flush on a schedule.
Whether Running Both Buys You Anything
Start with the hardness figure for your own supply, because both machines are chosen against it. Your utility publishes an annual water quality report, sometimes called a Consumer Confidence Report, and where hardness appears, it is reported in milligrams per liter of calcium carbonate. The technical sheet for an anti-scale system states its maximum hardness in grains per gallon instead. One grain per gallon is 17.1 milligrams per liter, so divide the figure on your report by 17.1 to keep it in the sheet's units.
That figure sizes one unit, and one unit is the answer to the question in the title: a second tank in series adds a vessel and a pressure drop and nothing else, because whichever unit the water meets first has already dealt with the calcium. Where a house does run two devices, the second is there for something other than hardness, and which device sits where is a placement question of its own.
So write your grains-per-gallon figure down before anyone quotes you a machine, and hold it against the maximum hardness printed on that machine's sheet, because above that maximum the unit is ruled out on your water, whatever it does on somebody else's.
Frequently Asked Questions
Check what the unit is certified against. A national certification standard covers residential cation exchange softeners, and a unit certified to it carries a performance data sheet stating hardness reduction along with a salt efficiency rating in grains of hardness removed per pound of salt. A scale-prevention unit makes no hardness-reduction claim, because it removes no hardness. If the sheet you were handed lists none, you are looking at a conditioner, whatever the carton says.
It does, and the amount follows from the exchange. Two sodium ions leave the resin for every calcium ion that lands on it, which by equivalent weight comes to roughly 8 milligrams per liter of sodium for each grain per gallon of hardness removed. At 16 grains per gallon, water leaving your tank carries on the order of 125 milligrams per liter it did not have going in. A conditioner adds none.
The bed stops regenerating, hard water passes straight through, and the control valve keeps running its cycles with no brine to draw. The other version looks like a full tank: a salt bridge, a crust of hardened salt spanning the tank with a void underneath, so the brine well draws from nothing. If your dishes went spotty while the tank still looked full, push a broom handle down through the salt.
A cycle steps through backwash, brine draw and slow rinse, fast rinse, then brine refill; check your control valve's manual for the minutes each stage takes on your model. You can draw water while it runs, but what reaches your tap during those minutes is untreated, because the valve routes it around the bed. That is why the start time is a setting, and why it belongs at an hour when nobody is showering.
Both change what arrives at the heat exchanger, but neither replaces descaling. A tankless unit heats water inside narrow passages, which is why it needs a descaling procedure: close the isolation valves on the hot and cold service ports, connect a small pump, and circulate a food-grade acid solution through the exchanger. Your manual names the solution and the interval for your unit.
It is replaced rather than regenerated, and whole-house media is rated for a three-year change. The consequence is a date on the calendar: the whole charge comes out at once, and nothing added between changes brings a spent template back. Your softener has no equivalent date, because every brine cycle returns the resin to service, and what it consumes on a schedule is salt. Read the interval off the sheet that came with your own unit.
A water test at your own tap comes before either unit — the hardness, iron, and manganese numbers for your line specifically, where a report covering the whole system averages them away, and iron or manganese over a conditioner's stated limits rules that unit out, whatever your hardness turns out to be. Much Better Plumbing serves Las Vegas and Clark County. Call (702) 613-8452.
